50/125μm Multimode Duplex SC FC LC Fiber Optic Patch Cable

Product Categories
Shenzhen CY COM Product Co., Ltd.
Contact Now

50/125μm Multimode Duplex SC FC LC Fiber Optic Patch Cable

  • 1
  • 2
  • 3

Brand Name : CY COM

Model Number : SC LC

Certification : RoHS,ISO9001

Place of Origin : Shenzhen China

MOQ : 10PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30000pcs per day

Delivery Time : 3-5 working days

Packaging Details : PE bag or plastic box and Carton box

Length : 1m or customized

Cable color : Colors

Connector : SC,FC,LC

Ferrule End-face : UPC

Cable diameter : 0.9mm/2.0mm/3.0mm

Return loss : >50dB

Fiber Count : 4/6/8/12 Fibers

Contact Now

50/125μm Multimode Duplex SC FC LC Fiber Optic Patch Cable

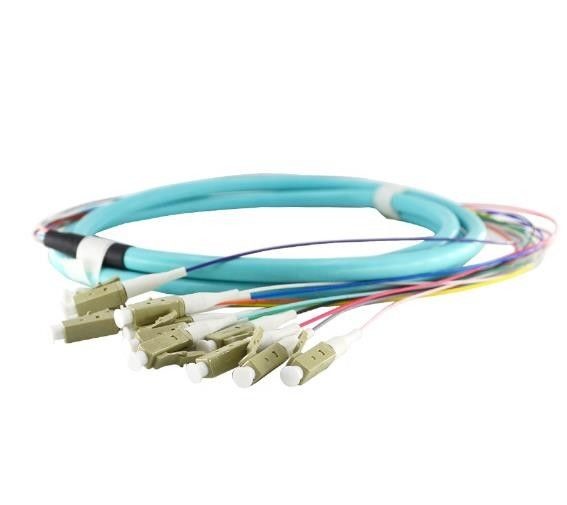

Customized LC/SC/FC/ST OM3 50/125 μm Multimode Fiber Optic Pigtail 4/6/8/12/24 core Color-coded/Bunch/Ribbon
Description:
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment. Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.
Features :
Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
Good in repeatability and exchangeability
High dense connection, easy for operation
Application:
Telecommunication
Computer networks
CATV networks Active device termination
Instrumentation

Parameters

Parameter Singlemode Fiber Multimode Fiber
PC UPC APC PC
Insertion Loss(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.3
Return Loss(dB) ≥45 ≥50 ≥60 ≥20
Exchangeability(dB) ≤0.2
Plug-pull life(times) ＞1000
Operating temperature(℃) -40~+75
Storage temperature(℃) -45~+80
Fiber model φ0.9mm, φ2.0mm, φ3.0mm

50/125μm Multimode Duplex SC FC LC Fiber Optic Patch Cable
