ST Female to SC Female Hybrid Metal Duplex Fiber optic Adapter

Brand Name : CY COM

Model Number : ST-SC adapter

Certification : ISO9001:2015 ,ISO14001:2015,ROSH,SGS

Place of Origin : Shenzhen China

MOQ : 50pcs

Payment Terms : T/T, Western Union

Supply Ability : 5 MIllion PCS / Month

Delivery Time : 2-3 days

Packaging Details : Blister Box

Item : ST-SC hybrid adapter

FC Side : Female

SC Side : Female

Shape : Rectangle

FC Material : Zinc or Copper alloy

SC Material : Zinc or Copper alloy

Fiber type : Singlemode / Mutilmode

Type : Duplex

Contact Now

ST Female to SC Female Hybrid Metal Duplex Fiber optic Adapter

Description:

Hybrid fiber optic adaptors allow users to convert from one connector type to another..
These adaptors are comprised of a polymer/Metal outer body and inner assembly fitted with a precision alignment mechanism. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and a precision moulded polymer housing provides consistent long-term mechanical and optical performance.

Features:

Low insertional loss and back reflection loss

High prcision alignment

Nickel plated brass body

Use in Single-mode or Multimode applications

Choice of housing material and sleeve material

ISO9001:2015,ROHS compliance

Application:

Fiber optic transmission system

CATV networks

LAN
Testing/Measurement Instruments
Fiber distribution frame, Mounts in fiber optic wall mount and rack mount cabinets.

Specification:

TYPE ROHS ST - SC Fiber Adapter Hybrid Optical Fiber Adapter Fiber Optic Adaptor, Low Insert Loss
Product Type FC or FC/D ST SC LC SMA ST/SC FC/SC FC/ST Utralow insertion loss
(FC SC ST)
Insertion loss ≤0.2 ≤0.2 ≤0.2 ≤0.1 ≤0.5 ≤0.4 ≤0.5 ≤0.1 MM≤0.05 SM≤0.1
Repeated mating ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.05
Sleeve material Mainly zirconia ceramic, phosphor bronze can be optional
Plug and unplug (times) ≥500
Insertion force (g) 300-600
Operating Temperature (°C) -40~+70
Storage Temperature (°C) -55~+85
According Standrand BelicoreTA-NWT-001209
Note 1. Optical jumper connectors are similar to wire plugs,adptors are similar to outlets.
2. The key indicators of adaptor are insert loss and tensile strength,the smaller interpolation loss & the range of interpolation force, the better.
3.The performance of ceramic sleeve is better than phosphorus bronze sleeve.

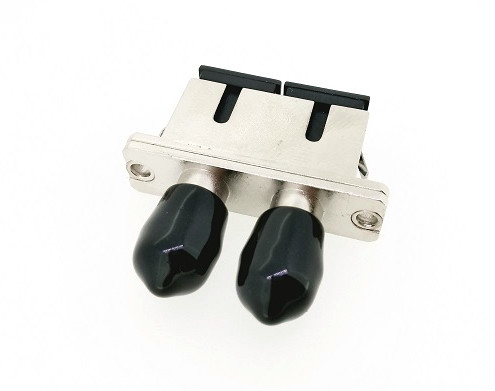

Drawing and Pictures:

ST Female to SC Female Hybrid Metal Duplex Fiber optic Adapter

ST Female to SC Female Hybrid Metal Duplex Fiber optic Adapter
